Bar Hangers

TGW1N

AMI-BH

Boxes size is 4" octagon or round
For ceiling fans not in excess of 35 lbs and light fixtures not in excess of 50 lbs at a span of 24". At a span of 16" the brace can support a 70 lb ceiling fan and a 110 lb fixture
Install Bar hangers on ceiling joists or wall studs by screws. AMI-BH install span length is from 406mm (16 in.) to 610mm ( 24 in .)
Bar hangers is installed with metallic boxes on wall studs or ceiling joists
TGW1N

NVENT-BH

Bar hangers is installed with metallic boxes on wall studs or ceiling joists
Boxes size is 4" octagon or round
For ceiling fans not in excess of 35 lbs and light fixtures not in excess of 50 lbs at a span of 24". At a span of 16" the brace can support a 70 lb ceiling fan and a 110 lb fixture.
Install Bar hangers on ceiling joists or wall studs by screws. NEVENT-BH install span length is from 406mm (16 in.) to 610mm ( 24 in .)
TGW1N

AMP-BH

Boxes size is 4" octagon or round
For ceiling fans not in excess of 35 lbs and light fixtures not in excess of 50 lbs at a span of 24". At a span of 16" the brace can support a 70 lb ceiling fan and a 110 lb fixture
Install Bar hangers on ceiling joists or wall studs by screws. AMI-BH install span length is from 406mm (16 in.) to 610mm ( 24 in .)
Bar hangers is installed with metallic boxes on wall studs or ceiling joists
TGW1N

LBHA1624

Item No.: LBHA1624
Box Size Fit: 3"×2"
Adjustable Span: 16 in (406 mm) to 24 in (610 mm)
Certification: cULus Listed
TGW1N

LBHA24

ADJUSTABLE LENGTH

17" to 26"

BOX DEPTHS

1-1/2" to 2-1/8"
TGW1N

LBHA16

ADJUSTABLE LENGTH

11" to 18"

BOX DEPTHS

1-1/2" to 2-1/8"
TGW1N

LBHT1

24" ceiling grid T-bar bracket, used with boxes 1-1/2" or 2-1/8" deep.

boxes size is 4" or 4-11/16" square or 4"
TGW1N

LBMB4S4P

FITS SQUARE BOX

4" or 4-11/16"

STUDWALL SPACING
24"
TGW1N

LBMB4S3P

FITS SQUARE BOX

4" or 4-11/16"

WALL STUD C-C

16"

DESCRIPTION

Three box locations. Use HC nipples (HC-50, HC-75, HC-100) for prefab wall units.
TGW1N

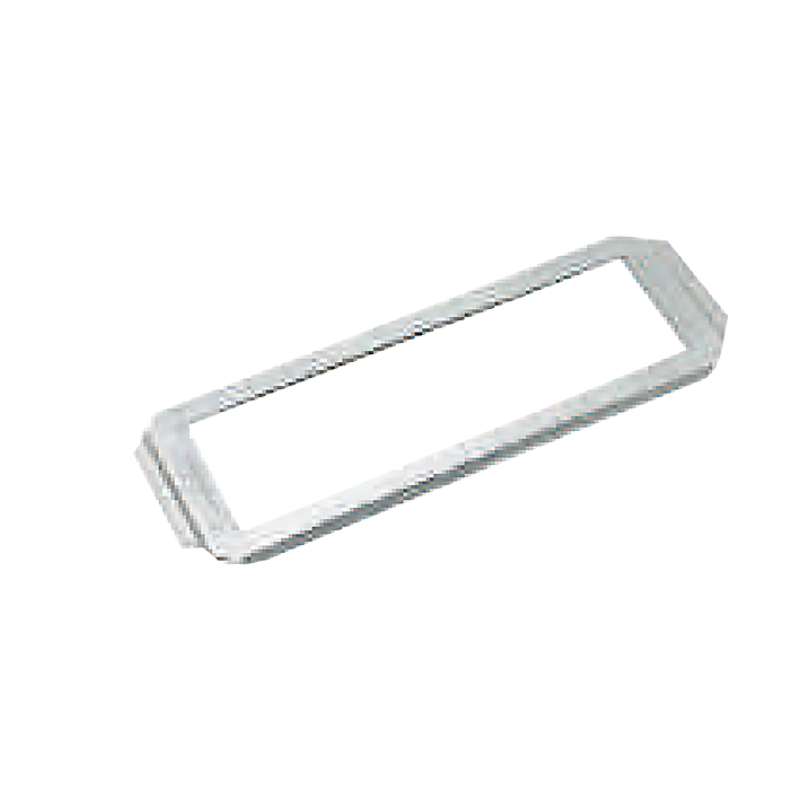

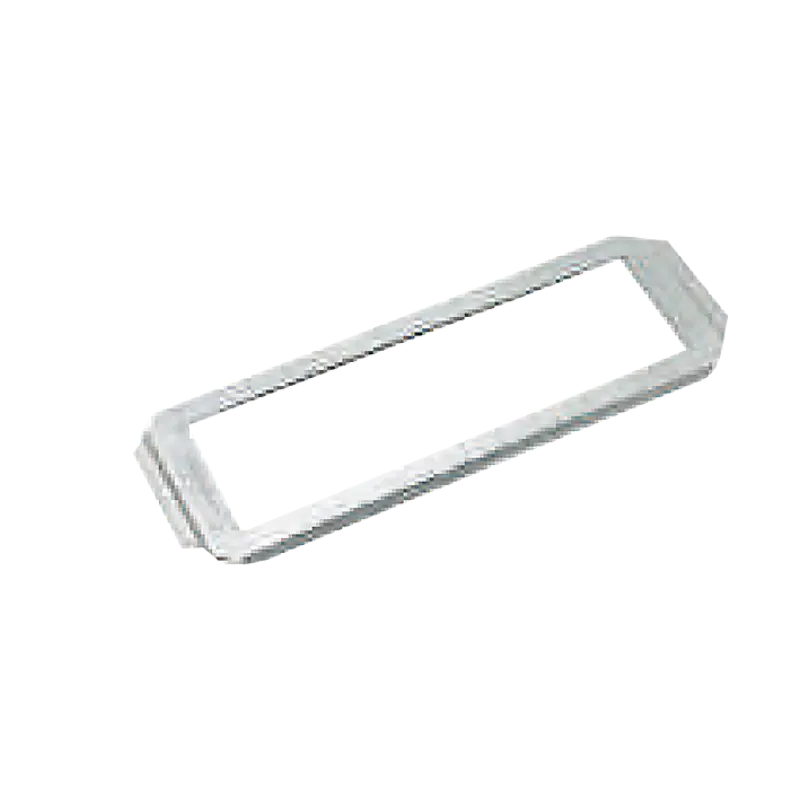

LBB7-1624

boxes size is 4" or 4-11/16" square
